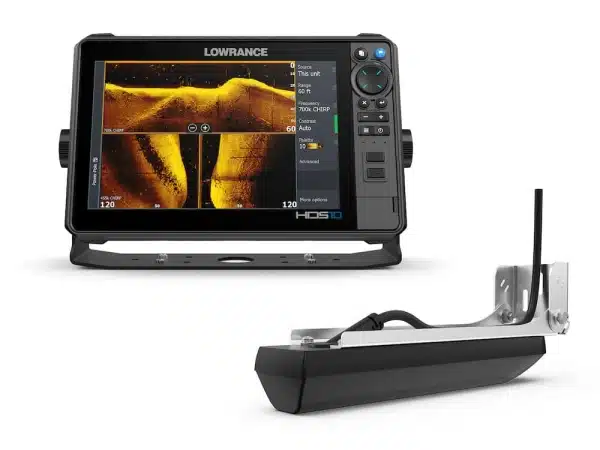

Display
Backlight Color Pure White LED
Display Resolution 1280 x 800
Screen Brightness >1200 Nits
Viewing Angles 80° top/bottom, 80° left/right
Electrical
Power Consumption max 2.9A @ 13VDC with Full Backlight, Sonar on
Power Consumption min 2.0A @ 13VDC with Full Backlight, Sonar on
Power Consumption typical 2.0A @ 13VDC with Full Backlight, Sonar on
Recommended Fuse Rating 3 A
Supply Voltage 12 v DC (10.8-17 V DC)
Physical
Dimensions W x H x D 11.06in (294.6 mm) x 7.6in (193.15 mm) x 3.3 in (82.5 mm)
Weight 3.66lb (1.66kg)
Compass Safe 1.6 ft (50 cm)
Mounting Type Panel mount or bracket mount
Environment
Humidity 60°C, 95% relative humidity (RH) for 18 hours
Operating Temperature Range 5°F to 131°F (-15°C to 55°C )
Shock Vibration 100,000 cycles of 20 G
Storage Temperature Range 4°F to 140°F (-20°C to 60°C )
Waterproof rating IPX7 with card door closed
Interface
Touchscreen Full Multi-touch touchscreen
Keypad 8-way directional keypad
User programable keys 2
Buttons Zoom +/-, Exit, Enter, Menu, Waypoint, Power / Light
Connectivity
Bluetooth® 5.2 with support for Bluetooth® classic
Ethernet Ports 2 x 100 Mbit, 6 max MFD’s on a network
Connectivity Wi Fi Internal 802.11b/g/n and Compatible with WiFi-1 Module
NMEA 2000 1x Micro-C
SD Card Storage 2 micro SD cards up to 32GB FAT32, Larger if formatted NTFS
NMEA 0183 via Power cable
Video
Output None
Input Composite video RCA – single channel via optional adaptor cable
GPS
Correction DGPS, WAAS
GPS Receiver Channels 16
Position Accuracy 20m RMS
Time to First Fix 30s
Update rate 10 Hz
MFD
Sonar Compatibility Integrated: Dual channel CHIRP Broadband, ActiveTarget (2), ActiveImaging (HD) DownScan, ActiveImaging (HD) SideScan. Compatible with: S3100, StructureScan, StructureScan3D, S5100, SonarHub
Radar All HALO Radars
Weather SiriusXM via WM-4 (USA only)
AIS AIS Chart and Radar overlay. Target vessel details.
Autopilot NAC-1, NAC-2, NAC3, Outboard Pilot, MotorGuide Xi5/Xi3 Trolling Motor **requires Motorguide PinPoint Gateway
Digital Switching CZone, Naviop, DDS
GPS 10 Hz GPS/GLONASS WAAS/EGNOS/MSAS
Internal Storage 8.0 GB Internal
Multimedia SonicHub, SonicHub 2, FusionLink products, any NMEA 2000 compliant Marine Audio products
Sonar Output Power 1kW
Waypoints, Routes, Tracks 3000 Waypoints, 100 Routes, 100 Trails with up to 10,000 points per trail
HTML5 Support for third part HTML apps
Autopilot Maneuvers Turn Patterns Course, Heading, Waypoint, Power Steer, U-Turn, C-Turn, Spiral, Zigzag, Square, Lazy-S
Steering Modes Course, Heading, Waypoint, Power Steer
